SMC has a complete line of rectangular waveguide Magic Tee Hybrids. These devices may be used as dividers or combiners with isolation between E and H-ports (35 dB min.) and collinear ports (15 to 20 dB min.) Our designs combine low VSWR and insertion loss, a balanced power split and high isolation over at least 25% of the band.
Data Sheets (click to download):

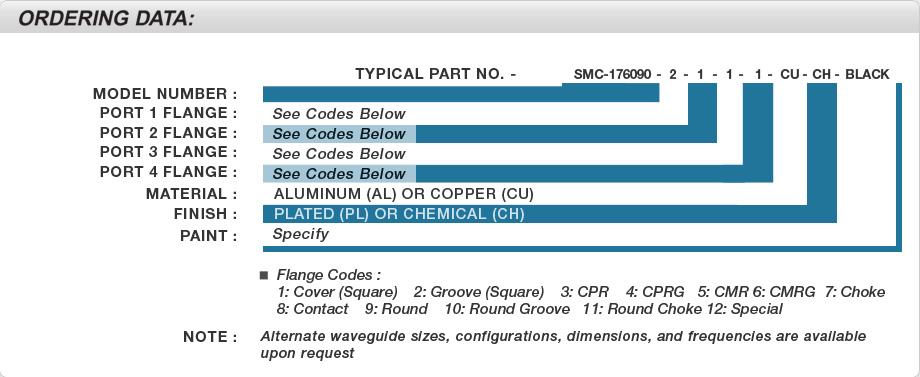

Rectangular Waveguide Magic Tee
| Model Number | Waveguide Size | Frequency | VSWR | E-H Isolation (dB) | Co-Linear Isolation (dB) | Dimension A | Dimension B |
|---|---|---|---|---|---|---|---|
| SMC-176010 | WR-10 | 75.0-110.0 GHz | Upon Request | Upon Request | Upon Request | 0.5 | 0.25 |
| SMC-176012 | WR-12 | 60.0-90.0 GHz | Upon Request | Upon Request | Upon Request | 0.75 | 0.5 |
| SMC-176015 | WR-15 | 50.0-75.0 GHz | Upon Request | Upon Request | Upon Request | 0.75 | 0.5 |
| SMC-176019 | WR-19 | 40.0-60.0 GHz | 1.30:1 | 30 | 17 | 1 | 0.75 |
| SMC-176022 | WR-22 | 33.0-50.0 GHz | 1.30:1 | 30 | 17 | 1.5 | 0.75 |
| SMC-176028 | WR-28 | 26.5-40.0 GHz | 1.20:1 | 30 | 20 | 1.5 | 0.75 |
| SMC-176034 | WR-34 | 22.0-33.0 GHz | 1.20:1 | 30 | 20 | 2 | 1 |
| SMC-176042 | WR-42 | 18.0-26.5 GHz | 1.20:1 | 30 | 20 | 2 | 1 |
| SMC-176051 | WR-51 | 15.0-22.0 GHz | 1.20:1 | 30 | 20 | 2.5 | 1.25 |
| SMC-176062 | WR-62 | 12.40-18.0 GHz | 1.20:1 | 30 | 20 | 2.5 | 1.25 |
| SMC-176075 | WR-75 | 10.0-15.0 GHz | 1.20:1 | 30 | 20 | 2.5 | 1.25 |
| SMC-176090 | WR-90 | 8.20-12.40 GHz | 1.20:1 | 30 | 20 | 3 | 1.5 |
| SMC-176102 | WR-102 | 7.00-11.0 GHz | 1.20:1 | 30 | 20 | 3.5 | 1.5 |
| SMC-176112 | WR-112 | 7.05-10.0 GHz | 1.20:1 | 30 | 20 | 3.5 | 1.75 |
| SMC-176137 | WR-137 | 5.85-8.20 GHz | 1.20:1 | 30 | 20 | 5 | 2.5 |
| SMC-176159 | WR-159 | 4.90-7.05 GHz | 1.20:1 | 30 | 20 | 5.5 | 2.75 |
| SMC-176187 | WR-187 | 3.95-5.85 GHz | 1.20:1 | 30 | 20 | 6 | 3 |
| SMC-176229 | WR-229 | 3.30-4.90 GHz | 1.20:1 | 30 | 20 | 8 | 4 |
| SMC-176284 | WR-284 | 2.60-3.95 GHz | 1.20:1 | 30 | 20 | 10 | 5 |
| SMC-176340 | WR-340 | 2.20-3.30 GHz | 1.20:1 | 30 | 20 | 12 | 6 |
| SMC-176430 | WR-430 | 1.70-2.60 GHz | 1.20:1 | 30 | 20 | 14 | 7 |
| SMC-176510 | WR-510 | 1.45-2.20 GHz | 1.20:1 | 30 | 20 | 16 | 8 |
| SMC-176650 | WR-650 | 1.12-1.70 GHz | 1.20:1 | 30 | 20 | 18 | 9 |
You can request a quote for this product by filling out this form.
Please contact us for all available specifications and configurations.
